Swivel for aerial acrobatics

Robust swivel for aerial acrobatics

Our swivel was specially developed for tough and long-term use in aerial acrobatics and circuses. It is characterized by its excellent load capacity and reliability.

Versatile application possibilities

A high-strength shackle with an impressive payload of 1500kg can be attached to one side of the swivel. This shackle is used to connect the swivel with round slings (also Steelflex) or ceiling plates.

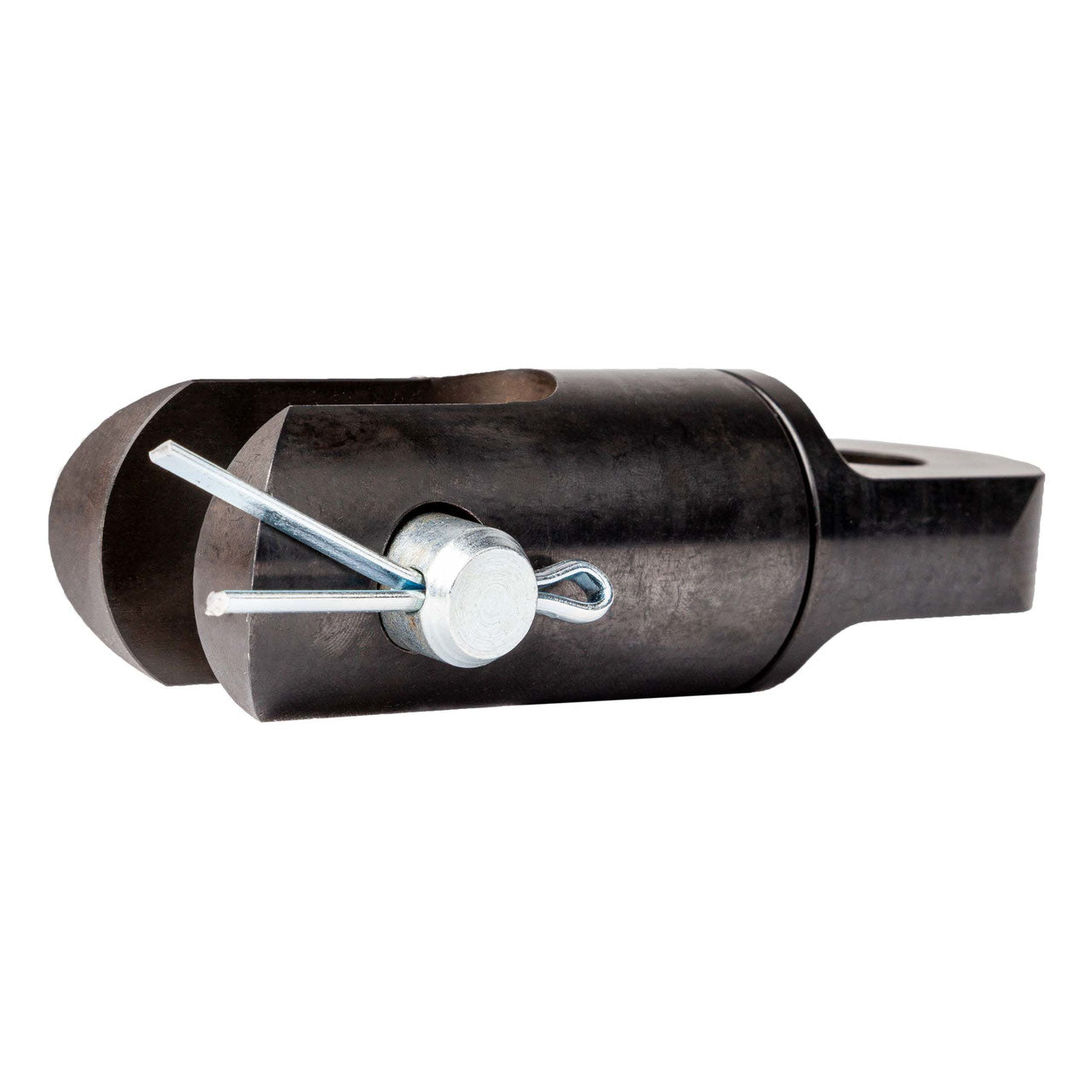

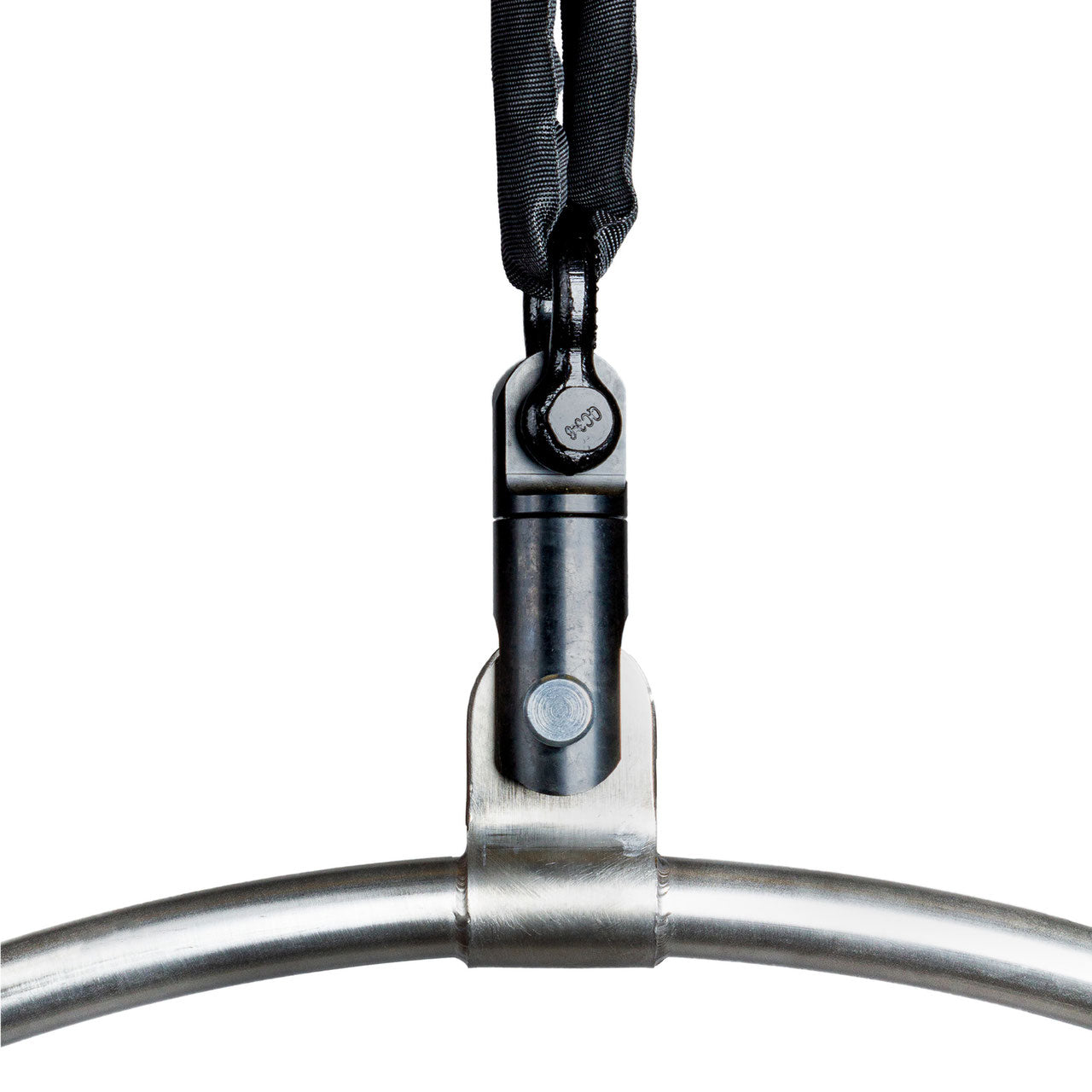

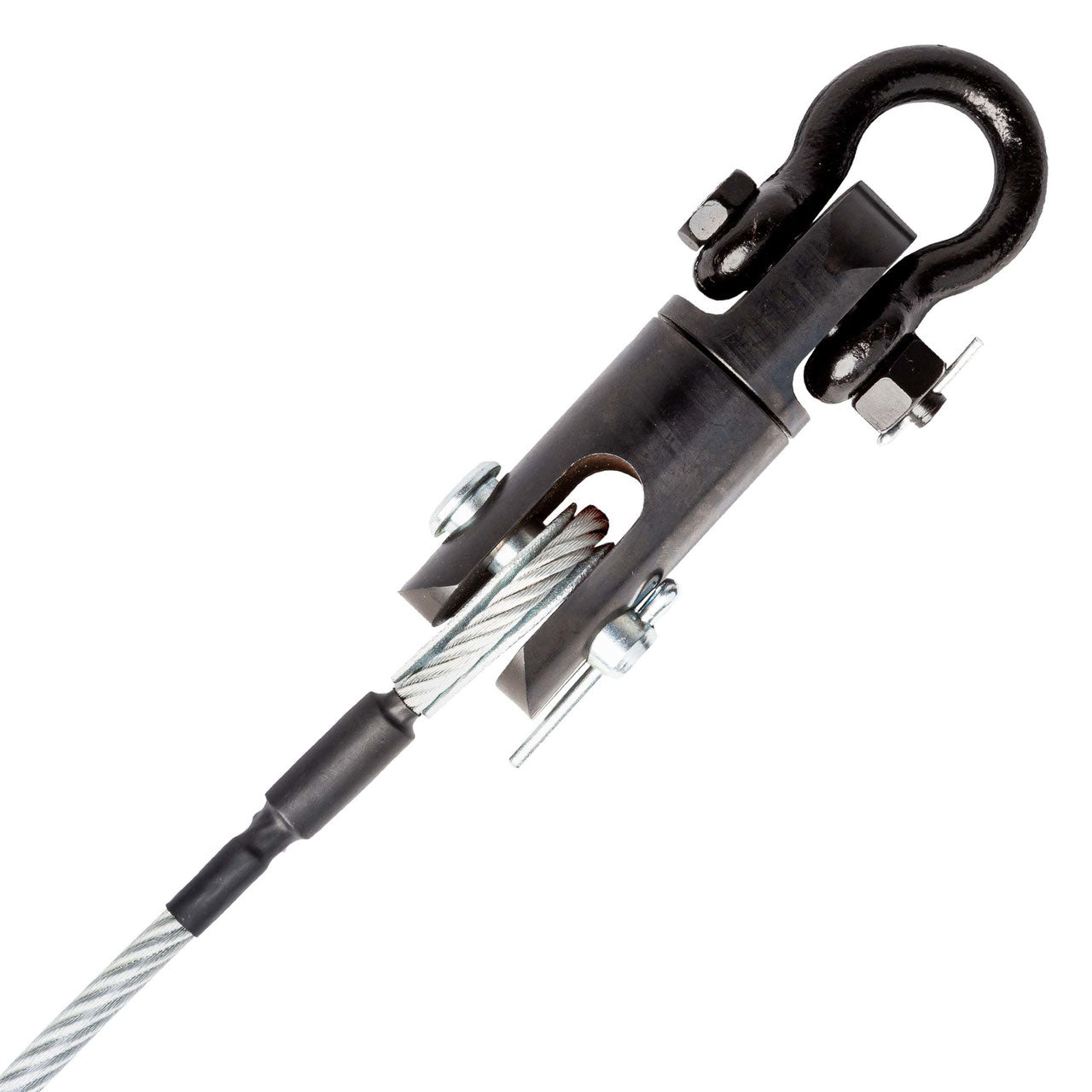

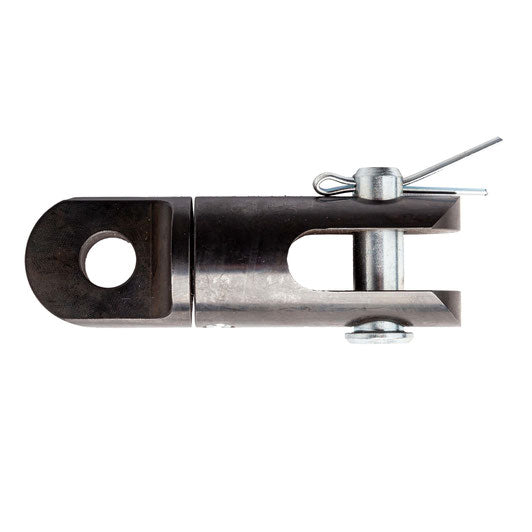

On the other side of the swivel, an easily removable bolt allows aerial hoops, wire ropes or aerial silk mounts to be attached directly. A small wire rope ensures that the bolt is securely secured against slipping out.

Easy testing and maintenance

With the included test piece, the swivel can be checked quickly and reliably for its load-bearing capacity. If the bolt reaches a diameter of less than 10 mm, it can be ordered individually and replaced. Complete replacement of the swivel is required if the gap between the rotating parts is more than 1 mm, which corresponds to the sheet thickness of the test piece.

Technical data:

• Payload: 1000 kg (SF10)
• Breaking load: 10,000 kg
• Maximum revolutions per minute: 60
• Length: 126mm
• Diameter: 36mm
• Material: Mostly hardened steel, burnished dark brown

Our swivel offers maximum safety and stability so that artists can perform their tricks without hesitation.
